Horizontal Field Strength Pattern

Vertical Field Strength Pattern



Code:
AN57-OD11

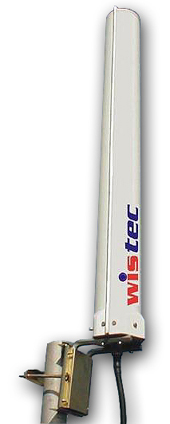

Technical Specifications of Antenna

Electrical
Operating Range, MHz 5700-5900
Gain, dB
11
Horizontal Beam Width, degree
360
Vertical Beam Width, degree
9
Impedance, Ohm 50
VSWR 1.5
Side lobe, dB < -20

Mechanical
Dimensions, mm L=350 D=50
Polarization Horizontal / Vertical
Wind Survival, kmph >200
Connector N-type
Random Material Aesthetic UV-inhabited white plastic
